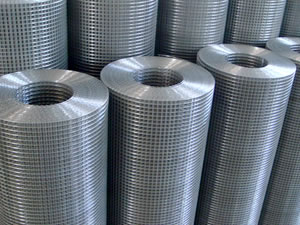

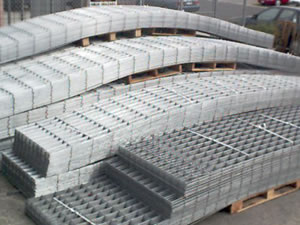

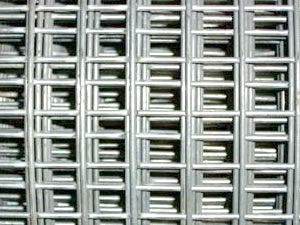

 Material: Low carbon steel wire, stainless steel wire.
Weaving and characteristics:
- Hot dipped galvanizing after weaving
Weaving with hot dipped galvanized iron wire
- Electric galvanizing after weaving
Weaving with electric galvanized iron wire
- PVC coated welded wire mesh
| Specification List of Welded Wire Mesh |
| Opening |
Wire Diameter<BWG> |
| In inch |
In metric unit(mm) |
| 1/4" x 1/4" |
6.4mm x 6.4mm |
22, 23, 24 |
| 3/8" x 3/8" |
10.6mm x 10.6mm |
19, 20, 21, 22 |
| 1/2" x 1/2" |
12.7mm x 12.7mm |
16, 17, 18, 19, 20, 21, 22, 23 |
| 5/8" x 5/8" |
16mm x 16mm |
18, 19, 20, 21, |
| 3/4" x 3/4" |
19.1mm x 19.1mm |
16, 17, 18, 19, 20, 21 |
| 1" x 1/2" |
25.4mm x 12.7mm |
16, 17, 18, 19, 20, 21 |
| 1-1/2" x 1-1/2" |
38mm x 38mm |
14, 15, 16, 17, 18, 19 |
| 1" x 2" |
25.4mm x 50.8mm |
14, 15, 16 |
| 2" x 2" |
50.8mm x 50.8mm |
12, 13, 14, 15, 16 |
Technical Note:
1, Standard roll length: 30m;width: 0.5m to 1.8m.
2, Special sizes available at request.

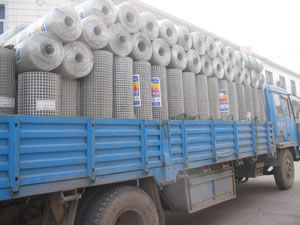

3, Packing: in waterproof paper in rolls. Custom packing available at request. |
|
| |
| Galvanized Fencing Mesh |
| Opening |
Wire Diameter<BWG> |
| In inch |
In metric unit(mm) |
| 2" x 3" |
50mm x 75mm |
2.0mm, 2.5mm, 1.65mm |
| 3" x 3" |
75mm x 756mm |
2.67mm, 2.41mm, 2.11mm, 1.83mm, 1.65mm |
| 2" x 4" |
50mm x 100mm |
2.11mm, 2.5mm |
| 4" x 4" |
100mm x 100mm |
2.0mm, 2.5mm |
Technical Note:
1, Standard roll length: 30m; width: 0.5m to 1.8m.
2, Special sizes available at request.
3, Packing: in waterproof paper in rolls. Custom packing available at request. |
|
| |
| PVC Coated Welded Mesh |
| Opening |
Wire Diameter<BWG> |
| In inch |
In metric unit(mm) |
| 1/2" x 1/2" |
12.7mm x 12.7mm |
16, 17, 18, 19, 20, 21 |
| 3/4" x 3/4" |
19mm x 19mm |
16, 17, 18, 19, 20, 21 |
| 1" x 1" |
25.4mm x 25.4mm |
15, 16, 17, 18, 19, 20 |
Technical Note:
1, Standard roll length: 30m;width: 0.5m to 1.2m
2, Special sizes available at request
3, Packing: in waterproof paper in rolls. Custom packing available at request. |
|
|
