Dutch Woven Wire Cloth

Anping Top Metal Products Co.,Ltd is an expert in woven wire mesh, especially we could custom any special type wire mesh filter cloth .

Materials: 302、304、304L、316、316L Stainless steel wire ,Nickel wire,Brass wire, Low-Carbon Steel wire and Special Alloy wire.

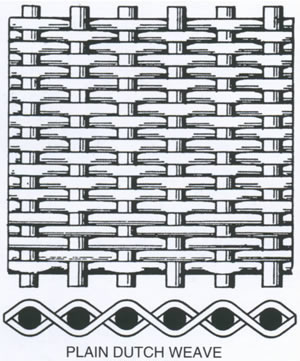

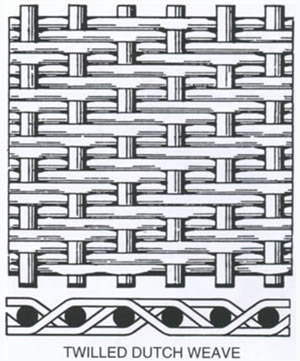

Weaving Types: Plain Dutch Weave,Twilled Dutch Weave, Reverse Dutch Weave and Five-Heddle Weave.

Property: This kind of woven wire mesh offers good wear-resistance, heat-resistance, acid-resistance and corrosion resistance.

Usage: Dutch Woven Wire Cloth are extensively utilized as filter fittings for chemical industry, medicine, petroleum, telecom-communication, scientific research units ,due to its stable and fine filtration capability.



Dutch Woven Wire Mesh Filter Cloth Property: This kind of woven wire mesh offers good wear-resistance, heat-resistance, acid-resistance and corrosion resistance.

Wire Mesh Filter Cloth Uses: Stainless Steel Dutch Woven Wire Cloth and other materials are utilized as filter fittings for chemical industry, medicine, petroleum, telecom-communication, scientific research units and so on.

Wire Mesh Filter Cloth Dutch Woven
Gauge No.
Mesh/Inch(Warp x Weft)

Wire Diameter
(Warp x Weft)

Reference Aperture
(um)
Weight/sq
(kg)
32#
8 x 62
0.63mm x 0.45mm
300
5.42
40#
10 x 79
0.50mm x 0.355mm
250
3.16
48#
12 x 64
0.58mm x 0.40mm
280
2.9
55#
14 x 88
0.40mm x 0.30mm
180
2.54
76#
19 x 140
0.315mm x 0.20mm
140
1.88
80#
20 x300
0.35mm x 0.20mm
-
3.6
95#
24 x 110
0.355mm x 0.25mm
120
2.45
100#
25 x 140
0.28mm x 0.20mm
100
1.95
120#
30 x 150
0.25mm x 0.18mm
80
1.68
140#
35 x 175
0.224mm x 0.16mm
71
1.52
160#
40 x 200
0.20mm x 0.14mm
60
1.40
180#
45 x 250
0.16mm x 0.112mm
56
1.09
200#
50 x 250
0.14mm x 0.11mm
53
1.04
220#
55.5 x 280
0.14mm x 0.10mm
50
0.92
240#
65 x 330
0.11mm x 0.08mm
36
0.71
280#(1)
70 x 350
0.11mm x 0.08mm
35
0.72
280#(2) 70 x 385 0.11mm x 0.07mm 32 0.75
300#
78 x 700
0.11mm x 0.08mm
30
1.39
315#(1)
80 x 400
0.10mm x 0.065mm
40
0.62
315#(2)
80 x 600
0.10mm x 0.06mm
-
-
315#(3)
80 x 800
0.15mm x 0.04mm
-
-
320#
81 x 780
0.10mm x 0.07mm
30
1.22
354#
90 x 550
0.12mm x 0.05
-
-
Roll width: 1-1.6m

Wire Mesh Filter Cloth Dutch Woven
Gauge No.
Mesh/Inch(Warp x Weft)

Wire Diameter

Reference Aperture
Weight/sq
(Warp x Weft)
(um)
(kg)
360#
91 x 787
0.10mm x 0.07
25
1.24
400#
101 x 900
0.10mm x 0.063
20
1.22
472#
120 x 400
0.10mm x 0.075
-
-
500#
127 x 1100
0.07mm x 0.05
17
0.81
630#
160 x 1500
0.063mm x 0.04
15
0.62
650#(1)
165 x 400
0.071mm x 0.06
-
-
650#(2)
165 x 600
0.071mm x 0.05
-
-
650#(3)
165 x 800
0.071mm x 0.05
25
-
650#(4)
165 x 1100
0.071mm x 0.045
-
-
650#(5)
165 x 1400
0.071mm x 0.04
16
0.76
685#
174 x 1700
0.063mm x 0.032
13
0.61
787#(1)
200 x 600
0.071mm x 0.06
-
-
787#(2)
200 x 800
0.071mm x 0.05
-
-
787#(3)
200 x 1400
0.071mm x 0.04
12
0.8
795#
202 x 1760
0.05mm x 0.032
10
0.6
850#
216 x 1860
0.045mm x 0.030
9
-
1000#
254 x 2000
0.04mm x 0.028
8
0.5
1125#
285 x 2235
0.036mm x 0.025
7
-
1228#
312 x 2100
0.035mm x 0.025
-
-
1250#
318 x 2235
0.036mm x 0.025
-
-
1280#
325 x 2300
0.035mm x 0.025
5
0.45
1575#
400 x 3100
0.035mm x 0.019
3
-
Roll width: 1-1.6m
