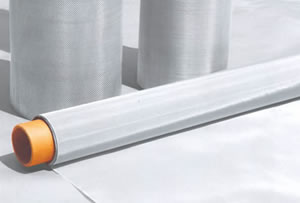

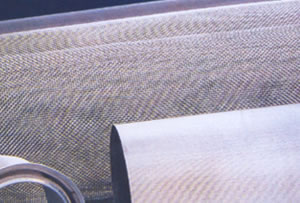

Stainless Steel Wire Mesh( Square Opening)
Anping Top Metal Products Co.,Ltd. is the major manufacturer of stainless steel wire mesh in China, especially be famous for its best quality and excellent reputation. Stainless steel wire mesh square opening is in contrast with stainless steel Dutch woven wire mesh.
Materials: 302、304、304L、316、316L Stainless steel wire.
Weaving Types: Plain Weave and Twilled Weave.
Plain weave: Each warp wire crosses alternately above and below each weft wire. Warp and weft wires generally have the same diameter.
Twill Weave :Each weft wire passing alternately over two, and then under two successive warp wires and each warp wire passing alternately over two and under two successive weft wires. It is possible to be used to allow a heavier than standard wire diameter.
Property: It has good performance of acid-resisting,alkali-resisting,heat-resisting and wear-resisting etc.
Usage: Stainless steel wire mesh and wire cloth are widely used in petroleum, chemical industry, environment protection, mine, airspace, paper-making,electronic, metallurgy etc.
| Specification List of Stainless Steel Wire Mesh |
| Mesh/Inch |
Wire Gauge(SWG) |
Aperture in mm |
| 3mesh x 3mesh |
14 |
6.27 |
| 4mesh x 4mesh |
16 |
4.27 |
| 5mesh x 5mesh |
18 |
3.86 |
| 6mesh x 6mesh |
18 |
3.04 |
| 8mesh x 8mesh |
20 |
2.26 |
| 10mesh x 10mesh |
20 |
1.63 |
| 20mesh x 20mesh |
30 |
0.95 |
| 30mesh x 30mesh |
34 |
0.61 |
| 40mesh x 40mesh |
36 |
0.44 |
| 50mesh x 50mesh |
38 |
0.36 |
| 60mesh x 60mesh |
40 |
0.30 |
| 80mesh x 80mesh |
42 |
0.21 |
| 100mesh x 100mesh |
44 |
0.172 |
| 120mesh x 120mesh |
44 |
0.13 |
| 150mesh x 150mesh |
46 |
0.108 |
| 160mesh x 160mesh |
46 |
0.097 |
| 180mesh x 180mesh |
47 |
0.09 |
| 200mesh x 200mesh |
47 |
0.077 |
| 250mesh x 250mesh |
48 |
0.061 |
| 280mesh x 280mesh |
49 |
0.060 |
| 300mesh x 300mesh |
49 |
0.054 |
| 350mesh x 350mesh |
49 |
0.042 |
| 400mesh x 400mesh |
50 |
0.0385 |
| Roll width: 2'-8' |
|
