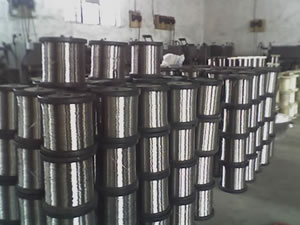

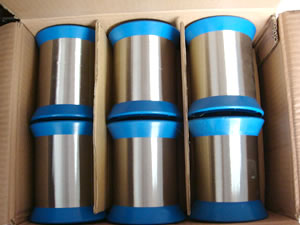

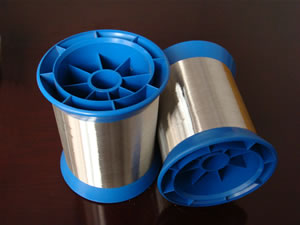

Anping Top Metal Products Co.,Ltd. quality stainless steel wire, wire diameter from 5mm to 0.025mm available. Besides using in wire mesh weaving by ourselves, we also sell stainless steel wire to local market and overseas market.
Stainless steel wire is used in a number of industries including wire-drawing, weaving of wire mesh, soft pipe, beam of cabinet, steel wire rope, filter material and equipment, spring, making of handicrafts, etc.
| Sizes of Stainless Steel Wire: |
Wire Diameter(mm) |
Tolerance(mm) |
Max. Deviation Tolerance (mm) |
0.020-0.049 |
+0.002/-0.001 |
0.001 |
0.050-0.074 |
0.002 |
0.002 |
0.075-0.089 |
0.002 |
0.002 |
0.090-0.109 |
+0.003/-0.002 |
0.002 |
0.110-0.169 |
0.003 |
0.003 |
0.170-0.184 |
0.004 |
0.004 |
0.185-0.199 |
0.004 |
0.004 |
0.200-0.299 |
0.005 |
0.005 |
0.300-0.310 |
0.006 |
0.006 |
0.320-0.499 |
0.006 |
0.006 |
|
| |
| Chemical Composition of Stainless Steel Wire: |
AISI
Grade |
Chemical Composition(%) |
|
C |
Si |
Mn |
P |
S |
Ni |
Cr |
Mo |
|
304 |
=<0.08 |
=<1.00 |
=<2.00 |
=<0.045 |
=<0.030 |
8.00~10.50 |
18.00~20.00 |
- |
304H |
>0.08 |
=<1.00 |
=<2.00 |
=<0.045 |
=<0.030 |
8.00~10.50 |
18.00~20.00 |
- |
304L |
=<0.030 |
=<1.00 |
=<2.00 |
=<0.045 |
=<0.030 |
9.00~13.50 |
18.00~20.00 |
- |
316 |
=<0.045 |
=<1.00 |
=<2.00 |
=<0.045 |
=<0.030 |
10.00~14.00 |
10.00~18.00 |
2.00~3.00 |
316L |
=<0.030 |
=<1.00 |
=<2.00 |
=<0.045 |
=<0.030 |
12.00~15.00 |
16.00~18.00 |
2.00~3.00 |
430 |
=<0.12 |
=<0.75 |
=<1.00 |
=<0.040 |
=<0.030 |
=<0.60 |
16.00~18.00 |
- |
430A |
=<0.06 |
=<0.50 |
=<0.50 |
=<0.030 |
=<0.50 |
=<0.25 |
14.00~17.00 |
- |
|
|
