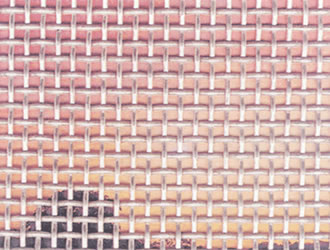

Insect Screening

Wire Materials of Window Screening: Stainless steel wire, galvanized iron wire, aluminum wire, fiberglass, etc.

Uses: Window screening is widely used in hotels and buildings to prevent insects and bugs from entering.

General sizes: 14mesh, 16mesh, 18mesh, etc. General wire diameter: BWG31 or BWG32.


Specification List of Window Screen Netting
Variety Specification Technical Notes
Mesh/Inch Wire Gauge Roll Size
Gal.Iron Wire Netting 10 x 10 BWG31
BWG32
BWG33
BWG34
3'x100'
4'x100'
1x25M
1.2x30M
1.5x25M

Process: Electric galvanized after weaving
Color: White or blue white



14 x 14
16 x 16
18 x 18
18 x 14
22 x 22
24 x 24
Enamelled Iron Wire Netting Same as above Green or dark green
Aluminum Coated Iron Wire Netting Same as above Silver
Aluminum Wire Netting Same as above

Material: Al-mg alloy or pure aluminum
Painted aluminum wire netting epoxy resin paint

Fiberglass Wire Netting 12 x 12

BWG31
BWG32

3'x100'
4'x100'
1x25M
1.2x25M

Available in different colors
14 x 14
16 x 16
16 x 14
PVC Wire Netting 12x 12 As above

Twisted weaving:12*14*16mesh;
Plain weaving:18*22*24mesh;
Colors available:white,blue,green,etc.

14 x 14
16 x 16
18 x 18
18 x 14
20 x 20
Stainless Steel Wire Netting

14 x 14 SWG38

16 x 16 SWG37

18 x 18 SWG36

18 x 14 SWG35

20 x 20 SWG34

3'x100'

4'x100'

1x25M

1.2x25M

Materials: Stainless steel 304*316*316L
PVC Coated Wire Netting 12x 12

BWG31

BWG32

As above Different colors available.
Used in petroluem, pipes wrapping.
14 x 14
16 x 16
18 x 18
