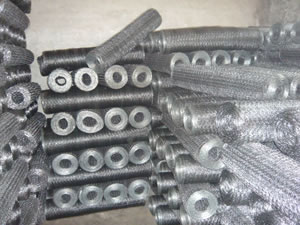

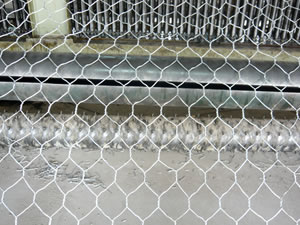

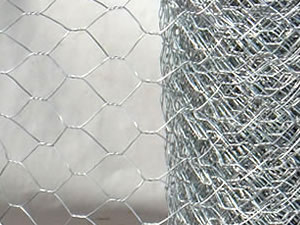

Hexagonal wire mesh is also known by the name of chicken mesh. Hexagonal wire netting is manufactured in galvanized iron and galvanized iron drawn wire. It is extensively used in building as reinforcement of the roof and floor, light. fecing for poultry farms, bids cages.tennis couts and fish garden, and children playground.
| Galvanized hex. wire netting in normal twist (width of 0.5M-2.0M) |
| Mesh |
Wire Gauge (BWG) |
| Inch |
mm |
| 3/8" |
10mm |
27, 26, 25, 24, 23, 22, 21 |
| 1/2" |
13mm |
25, 24, 23, 22, 21, 20, |
| 5/8" |
16mm |
27, 26, 25, 24, 23, 22 |
| 3/4" |
20mm |
25, 24, 23, 22, 21, 20, 19 |
| 1" |
25mm |
25, 24, 23, 22, 21, 20, 19, 18 |
| 1-1/4" |
32mm |
22, 21, 20, 19, 18 |
| 1-1/2" |
40mm |
22, 21, 20, 19, 18, 17 |
| 2" |
50mm |
22, 21, 20, 19, 18, 17, 16, 15, 14 |
| 3" |
75mm |
21, 20, 19, 18, 17, 16, 15, 14 |
| 4" |
100mm |
17, 16, 15, 14 |
|
| |
| Galvanized hex. wire netting in reverse twist (width of 0.5M-2.0M) |
| Mesh |
Wire Gauge(BWG) |
Reinforcement |
| Inch |
mm |
(BWG) |
Width(ft) |
Strand |
| 1" |
25mm |
22, 21, 20, 18 |
2' |
1 |
| 1-1/4" |
32mm |
22, 21, 20, 18 |
3' |
2 |
| 1-1/2" |
40mm |
20, 19, 18 |
4' |
3 |
| 2" |
50mm |
20, 19, 18 |
5' |
4 |
| 3" |
75mm |
20, 19, 18 |
6' |
5 |
|
| |

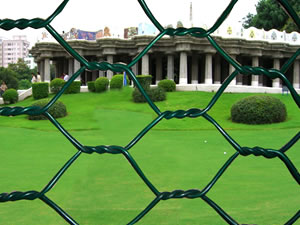

| Hex. wire netting PVC-coated (width of 0.5M-2.0M) |
| Mesh |
Wire Dia(mm)
|
| Inch |
mm |
| 1/2" |
13mm |
0.9mm, 0.1mm |
| 1" |
25mm |
1.0mm, 1.2mm, 1.4mm |
| 1-1/2" |
40mm |
1.0mm, 1.2mm, 1.4mm, 1.6mm |
| 2" |
50mm |
1.0mm, 1.2mm, 1.4mm, 1.6mm |
|
|
